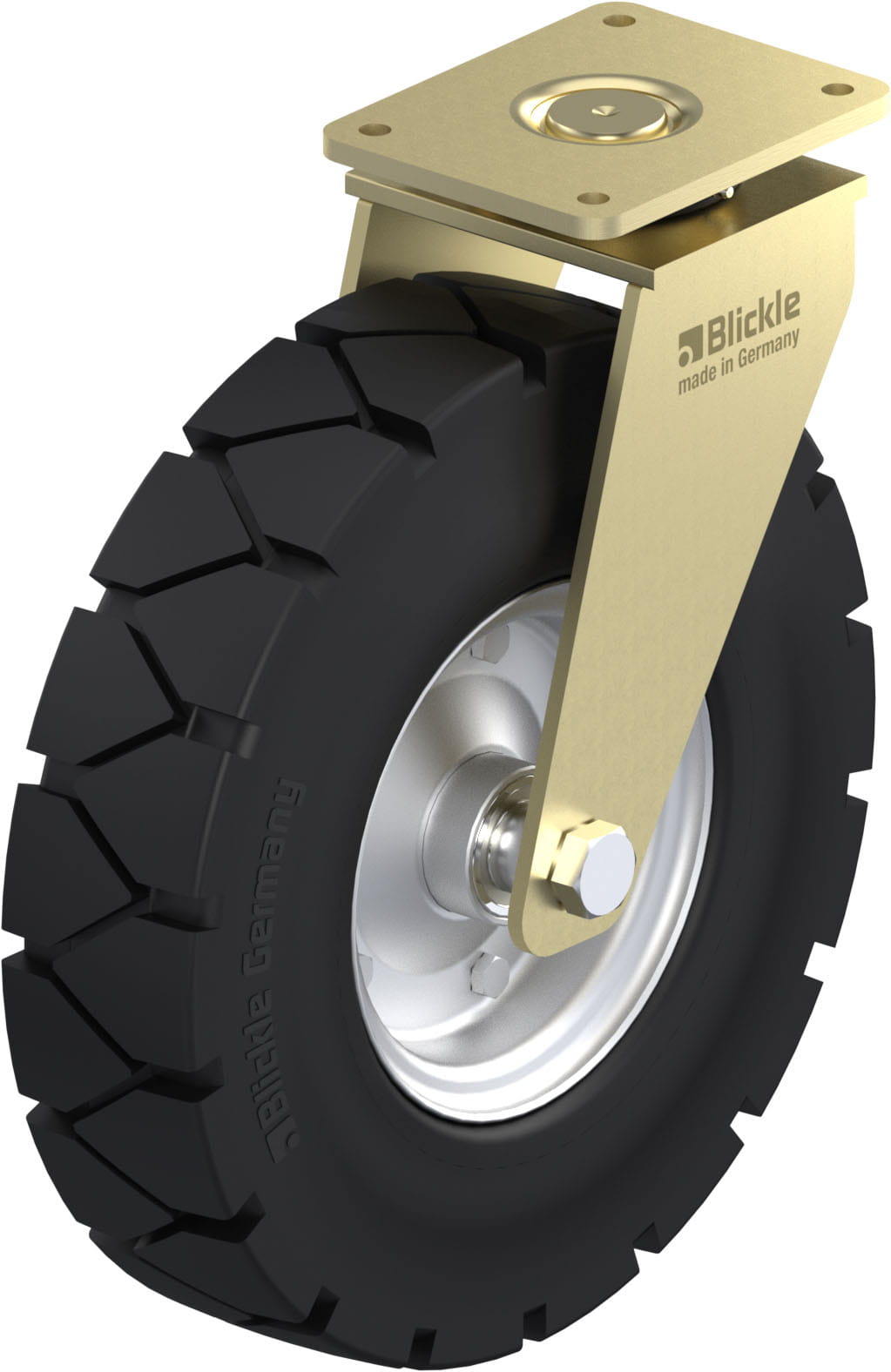

LS-VLE 460K

Heavy duty welded steel swivel castor, heavy duty swivel head, heavy duty wheel, with elastic solid rubber tyre

Bracket: LS series

• particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
• axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
• bolted and secured welded central kingpin, extremely strong
• dust and splash-proof
• grease nipple

Wheel: VLE series

• tyre: super-elastic solid rubber, hardness 70 Shore A, colour black
• 3-component tyre, highly-elastic cushion layer, abrasion-resistant tread
• rim: heavy pressed steel, zinc-plated, blue-passivated, Cr6-free

Other features:

• chemical resistance to many aggressive substances, except oils
• operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
• puncture-proof, maintenance-free

• The wheel and tyre dimensions provided here apply to new tyres that are not bearing a load. The dimensions may change when they are in use.
