LS-SVS 250K

Trgovina

250

Trgovina

65

Trgovina

10000

Trgovina

380

Trgovina

400 x 300

Heavy duty welded steel swivel castor, heavy duty swivel head, extra heavy duty solid steel wheelBracket: LS seriesparticularly robust welded steel co...

ID: 608802

Nasvet strokovnjaka!

Najdemo pravo
rešitev za vas

Kratki
dobavni roki

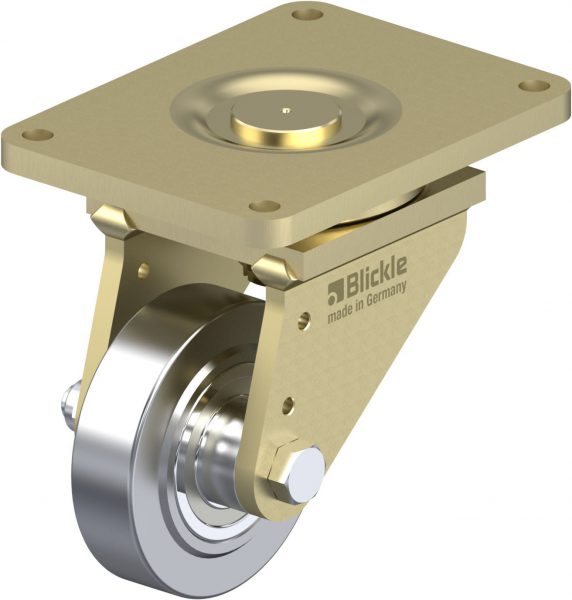

Heavy duty welded steel swivel castor, heavy duty swivel head, extra heavy duty solid steel wheel

Bracket: LS series

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Wheel: SVS series

  • heat-treatable steel, hardness 190–230 HB, slightly crowned tread

Other features:

  • chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +120 °C
  • consider the surface pressure on sensitive floors due to high point loads
Teža 81,43 kg
EAN-Code

Manufacturer

Product Group

Premer kolesa (mm)

Širina kolesa (mm)

Vrste pritrditve

Vrsta ležaja

Nosilnost pri 4 km/h (kg)

Total Height (mm)

Top Plate size (mm)

Material tekalne obloge

Material wheel center

Tip Kolesa

Colour wheel tread

Operating temperature max (°C)

Operating temperature min (°C)

Hardness

Ne pušča sledi

Antistatično

Elektro prevodno

Non-staining

Odporno na korozijo

Odporno na temperaturo

Odporno na hidrolizo

Primerno za avtoklav
