LS-SVS 150K-35-FS

Trgovina

150

Trgovina

55

Trgovina

3000

Trgovina

205

Trgovina

175 x 140

Heavy duty welded steel swivel castor, heavy duty swivel head, steel foot guard, extra heavy duty solid steel wheelBracket: LS seriesparticularly robu...

ID: 737260

Nasvet strokovnjaka!

Najdemo pravo
rešitev za vas

Kratki
dobavni roki

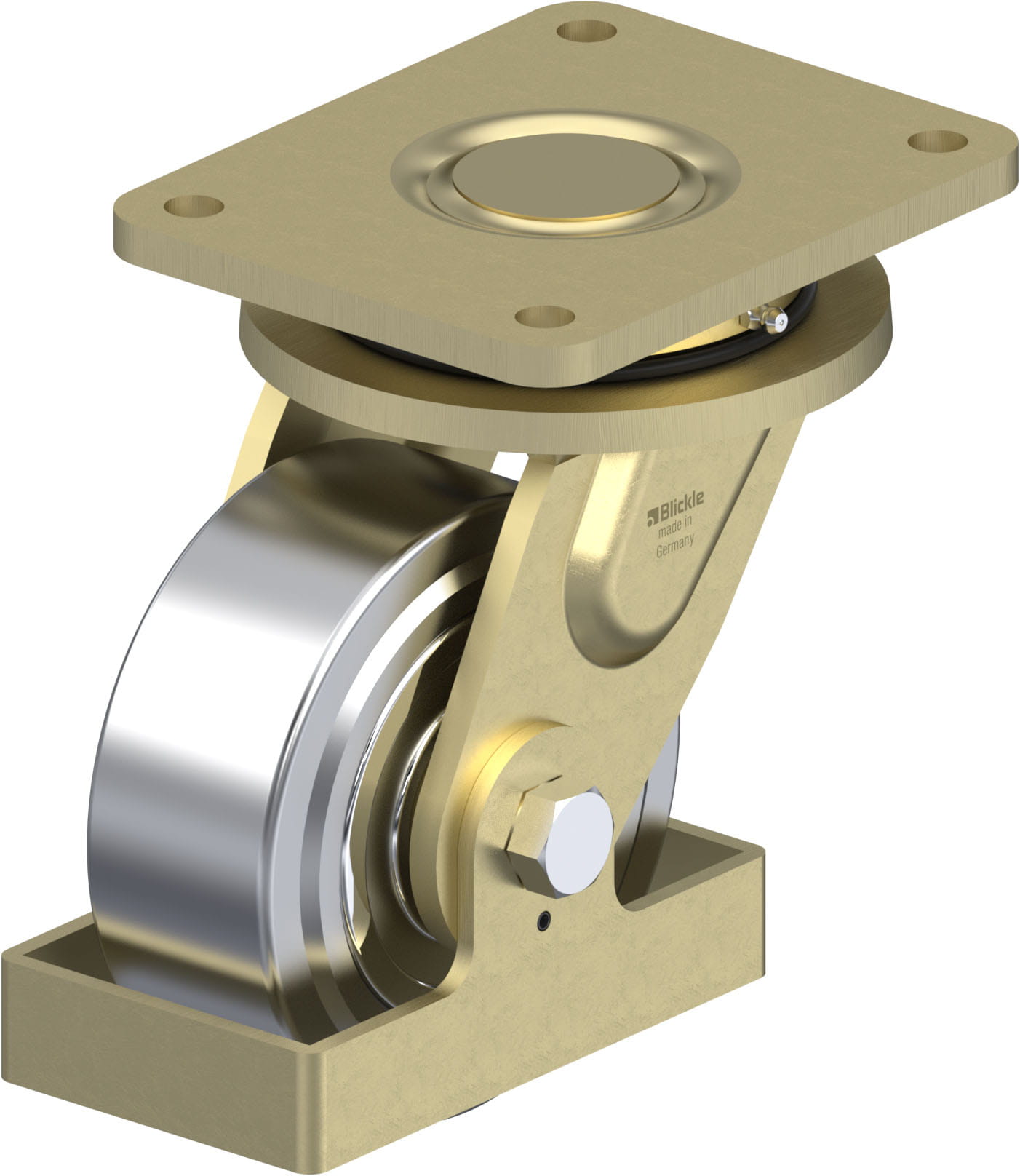

Heavy duty welded steel swivel castor, heavy duty swivel head, steel foot guard, extra heavy duty solid steel wheel

Bracket: LS series

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Wheel: SVS series

  • heat-treatable steel, hardness 190–230 HB, slightly crowned tread

Other features:

  • chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +120 °C
  • consider the surface pressure on sensitive floors due to high point loads
Teža 13,1 kg
EAN-Code

Manufacturer

Product Group

Premer kolesa (mm)

Širina kolesa (mm)

Vrste pritrditve

Vrsta ležaja

Nosilnost pri 4 km/h (kg)

Total Height (mm)

Top Plate size (mm)

Material tekalne obloge

Material wheel center

Tip Kolesa

Colour wheel tread

Operating temperature max (°C)

Operating temperature min (°C)

Hardness

Ne pušča sledi

Antistatično

Elektro prevodno

Non-staining

Odporno na korozijo

Odporno na temperaturo

Odporno na hidrolizo

Primerno za avtoklav
