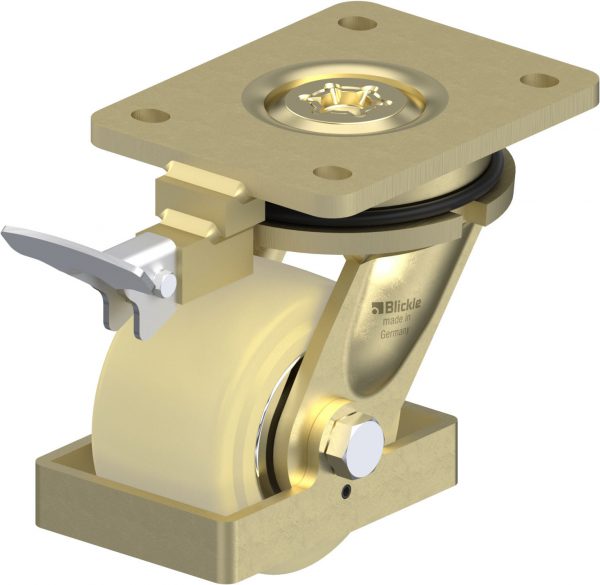

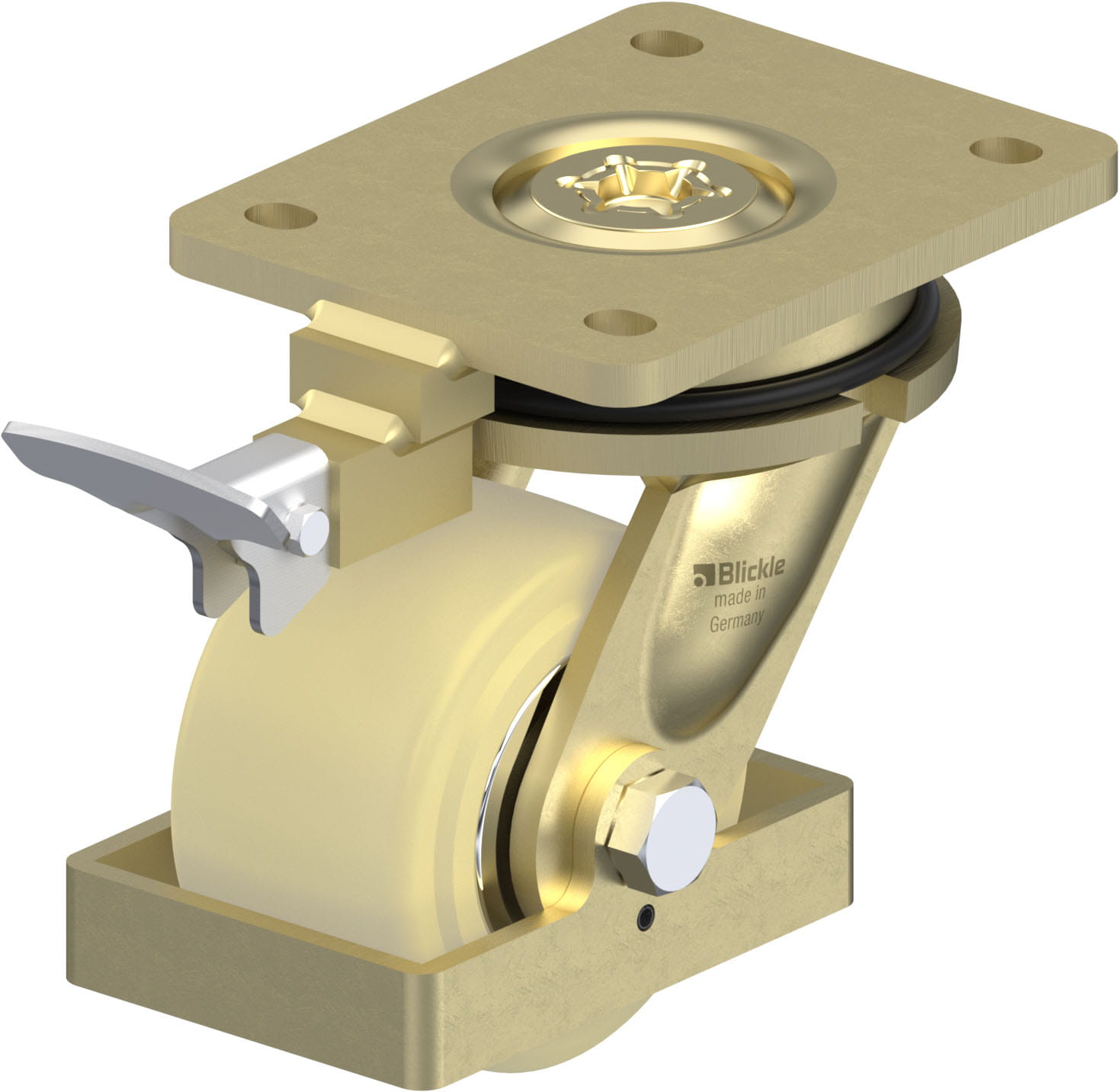

LS-GSPO 101K-RI4-FS

Heavy duty welded steel swivel castor, heavy duty swivel head, with directional lock, steel foot guard, heavy duty wheel made of compressed cast nylon

Bracket: LS series

• particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
• axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
• bolted and secured welded central kingpin, extremely strong
• dust and splash-proof
• grease nipple

Wheel: GSPO series

• high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige

Other features:

• high chemical resistance to many aggressive substances
• reduced moisture absorption
• operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
• consider the surface pressure on sensitive floors due to high point loads

• Load capacity test in compliance with DIN 12532 with extended breaks to avoid thermal overloading
