LR-GSPO 60K-RA

60

32

250

80

70

Pressed steel compact swivel castor, with bolt hole, with brake system 'Radstop', heavy duty wheel made of compressed cast nylonBracket: LR seriespres...

ID: 937229

Nasvet strokovnjaka!

Najdemo pravo
rešitev za vas

Kratki
dobavni roki

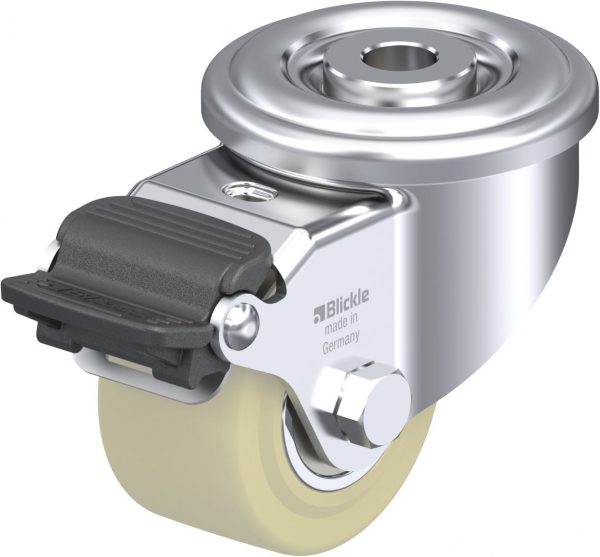

Pressed steel compact swivel castor, with bolt hole, with brake system ‘Radstop’, heavy duty wheel made of compressed cast nylon

Bracket: LR series

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: GSPO series

  • high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige

Other features:

  • high chemical resistance to many aggressive substances
  • reduced moisture absorption
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
  • consider the surface pressure on sensitive floors due to high point loads
  • Test in compliance with DIN 12530 with extended breaks to avoid thermal overloading
Teža 0,624 kg
EAN-Code

Manufacturer

Product Group

Premer kolesa (mm)

Širina kolesa (mm)

Vrste pritrditve

Vrsta ležaja

Load capacity at 3 km/ (kg)

Nosilnost pri 4 km/h (kg)

Total Height (mm)

Top Plate size (mm)

Material tekalne obloge

Material wheel center

Tip Kolesa

Colour wheel tread

Colour wheel center

Operating temperature max (°C)

Operating temperature min (°C)

Hardness

Ne pušča sledi

Antistatično

Elektro prevodno

Non-staining

Odporno na korozijo

Odporno na temperaturo

Odporno na hidrolizo

Primerno za avtoklav
