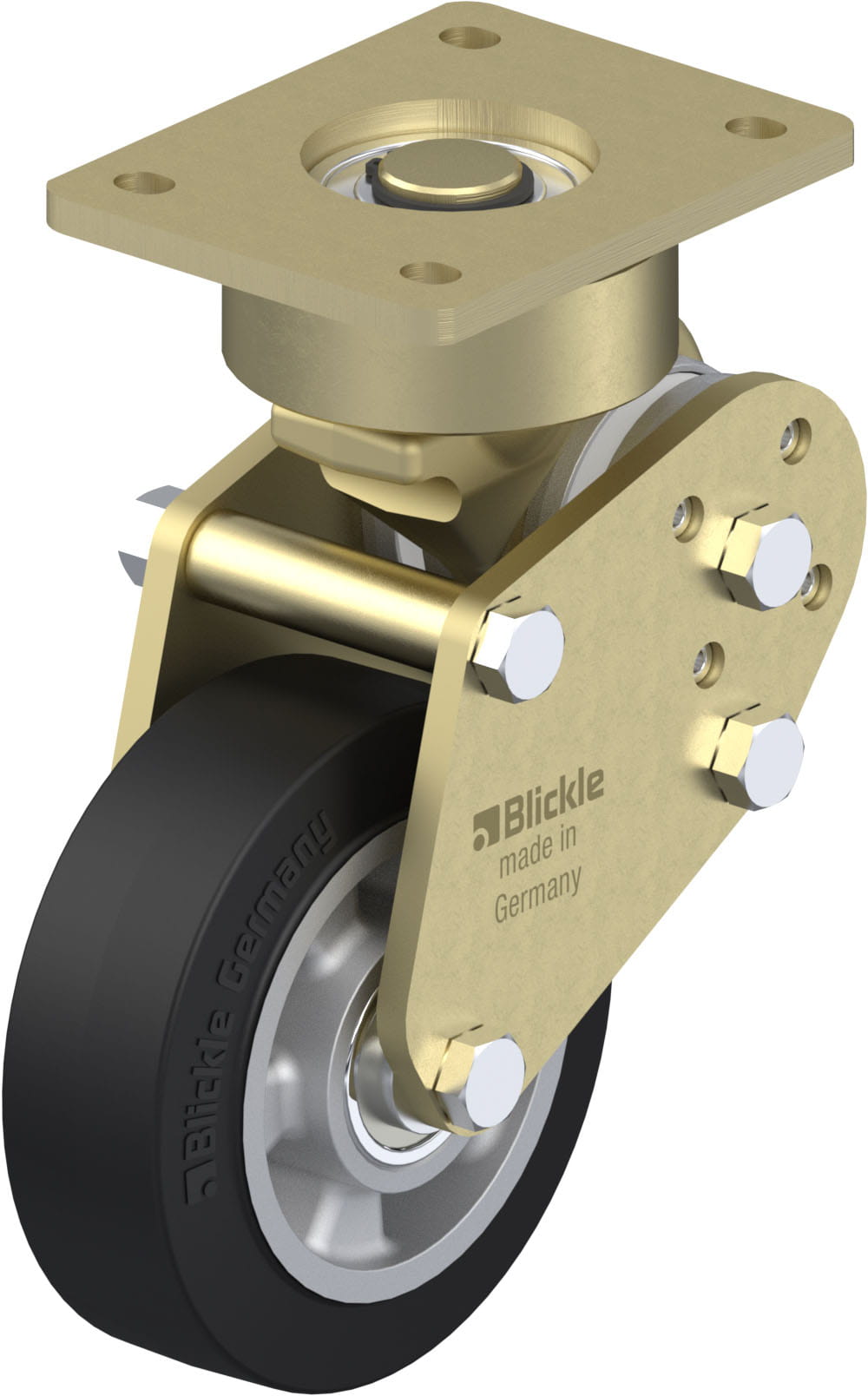

LPFE-ALEV 150K

Heavy duty swivel castor, with polyurethane torsion spring, heavy duty wheel, with ‘Blickle EasyRoll’ elastic solid rubber tyres, with aluminium wheel centre

Bracket: LPFE series

• solid welded steel construction, solid forged part, zinc-plated, yellow-passivated, Cr6-free
• patented woodruff key design for outstanding spring-damping properties
• one sealed lifetime lubricated grooved ball bearing in the swivel head (two for wheel Ø 125×50 mm or more)

Wheel: ALEV series

• tyre: high-quality elastic solid rubber “Blickle EasyRoll” in smooth rolling quality, hardness 65 Shore A, colour black
• wheel centre: die-cast aluminium

Other features:

• high chemical resistance to many aggressive substances, except oils
• operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
