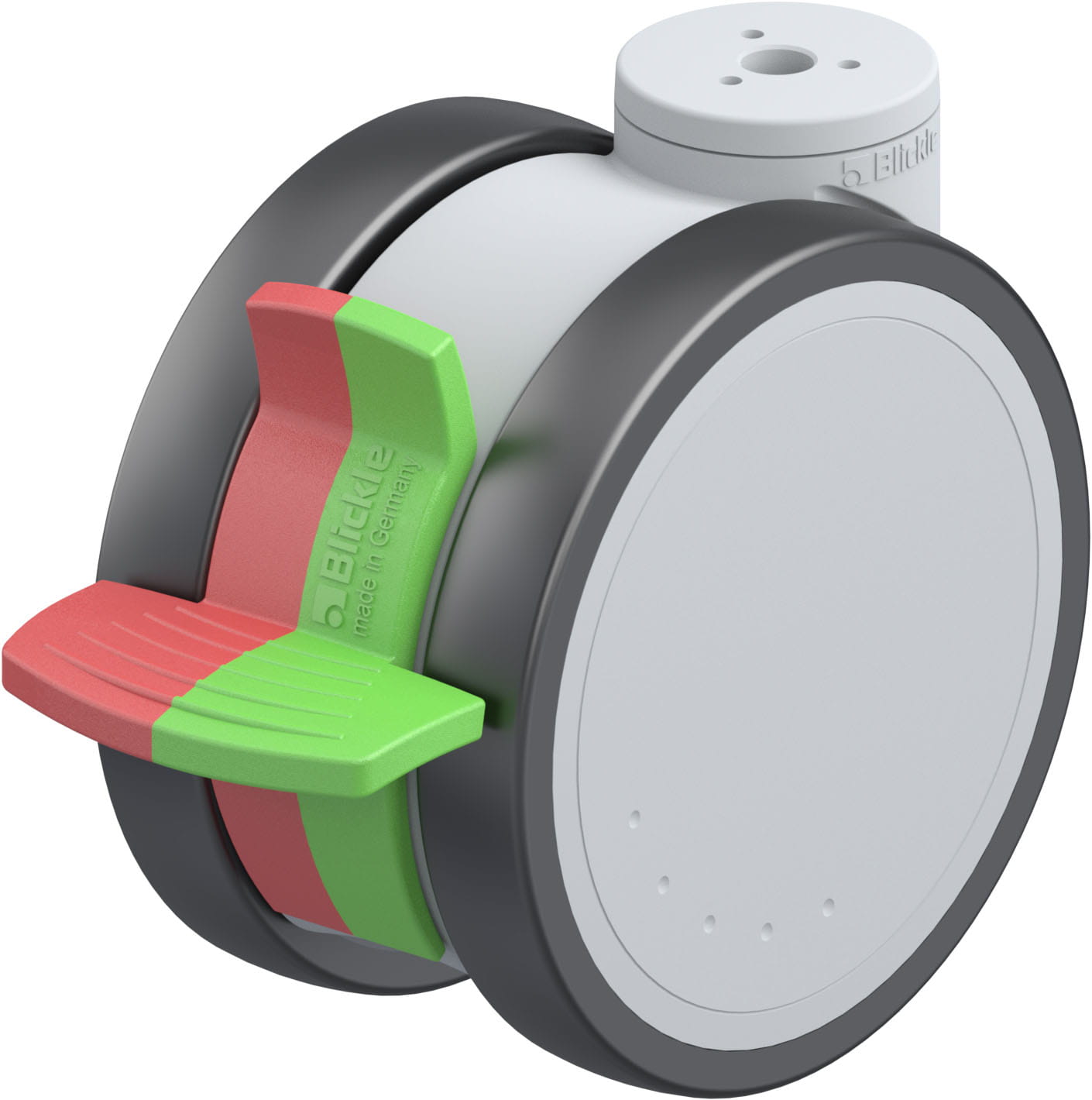

LKDG-PATH 125K-11-RIFI

Blickle synthetic twin castor MOVE, colour silver grey, with directional lock combined, with wheel brake, wheel, with thermoplastic polyurethane tread, with nylon wheel centre

Bracket: LKDG series

• high-quality nylon 6, impact resistant
• two grooved ball bearings in the swivel head sealed on both sides
• bolt hole
• colour silver grey RAL 7001
• modern, appealing design

Wheel: PATH series

• tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
• wheel centre: high-quality nylon 6, impact resistant, colour silver grey RAL 7001

Other features:

• very high chemical resistance to many aggressive substances
• operating temperature: -20 °C to +60 °C, temporarily up to +80 °C, reduced load capacity over +30 °C

• Installation advice: When mounting the castor to the trolley, the directional lock should be activated and the castor must be oriented in the driving direction. This means, the directional lock will only engage when the castor is facing the required direction of travel.
