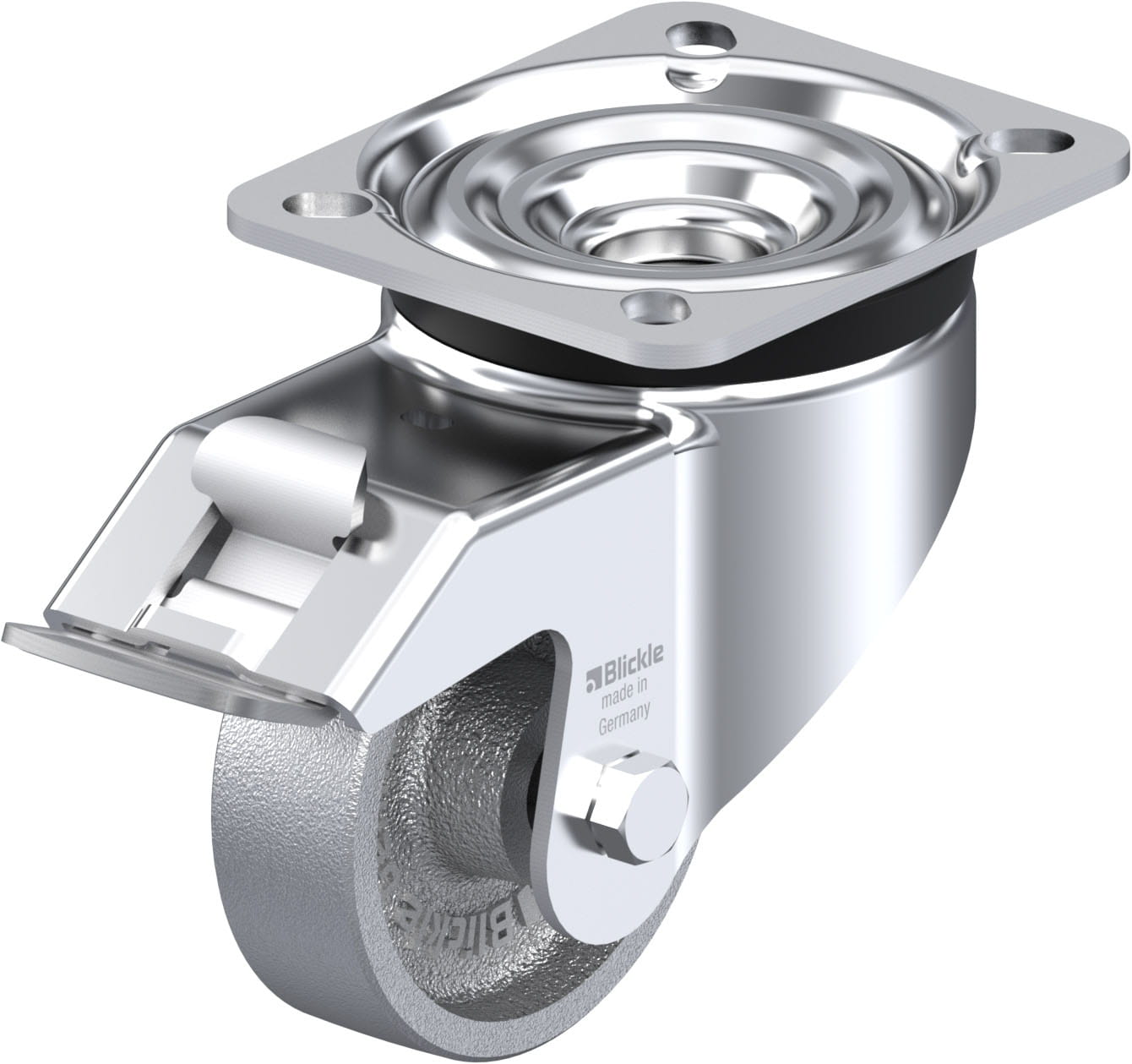

LK-G 80G-FI

Pressed steel swivel castor, Heavy duty design, with brake system ‘stop-fix’, cast iron wheel

Bracket: LK series

• strong pressed steel, zinc-plated, blue-passivated, Cr6-free
• double ball bearing in the swivel head
• strong central kingpin (from wheel Ø 125×50 mm)
• swivel head seal
• minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: G series

• rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Other features:

• chemical resistance to many aggressive substances
• consider the surface pressure on sensitive floors due to high point loads
• provide adequate lubrication on a regular basis for plain bore version
• to be lubricated according to the application temperature
