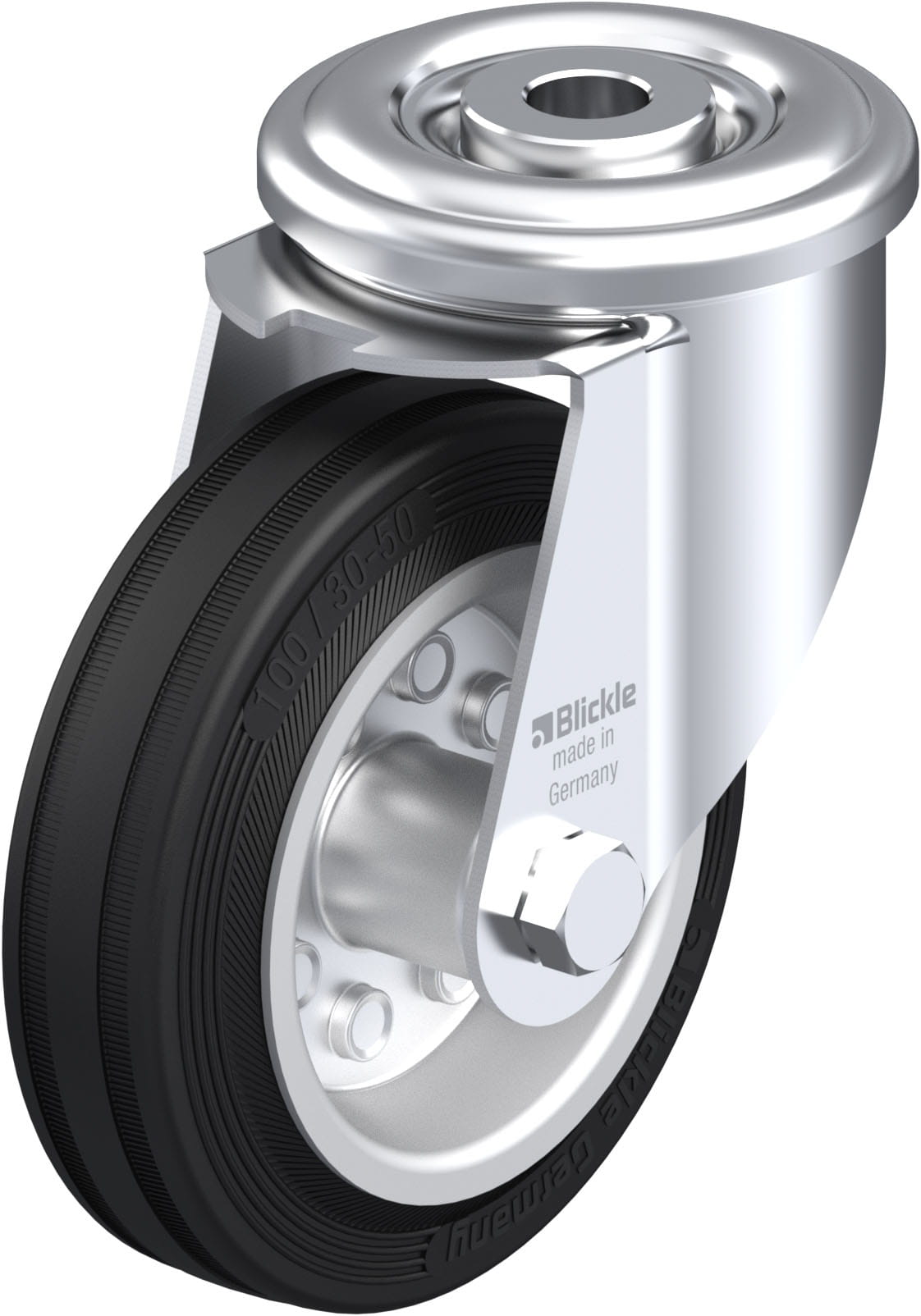

LIR-VEHI 100R

Pressed steel swivel castor, with bolt hole, heat-resistant, Blickle TempLine® wheel Basic, with solid rubber tyres, with pressed steel rim, heat-resistant

Bracket: LIR series

• pressed steel, zinc-plated, blue-passivated, Cr6-free
• passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
• double ball bearing in the swivel head
• strong central kingpin
• smooth rolling characteristic and low wear, increased service life
• swivel head play is set specifically for high-temperature applications
• highly heat-resistant grease

Wheel: VEHI series

• tyre: highly heat-resistant solid rubber, hardness 80 Shore A, colour black
• rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Other features:

• chemical resistance to many aggressive substances, except oils
• operating temperature: -25 °C to +200 °C
• majority of tyre flattening recovers when in motion under load
• passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
