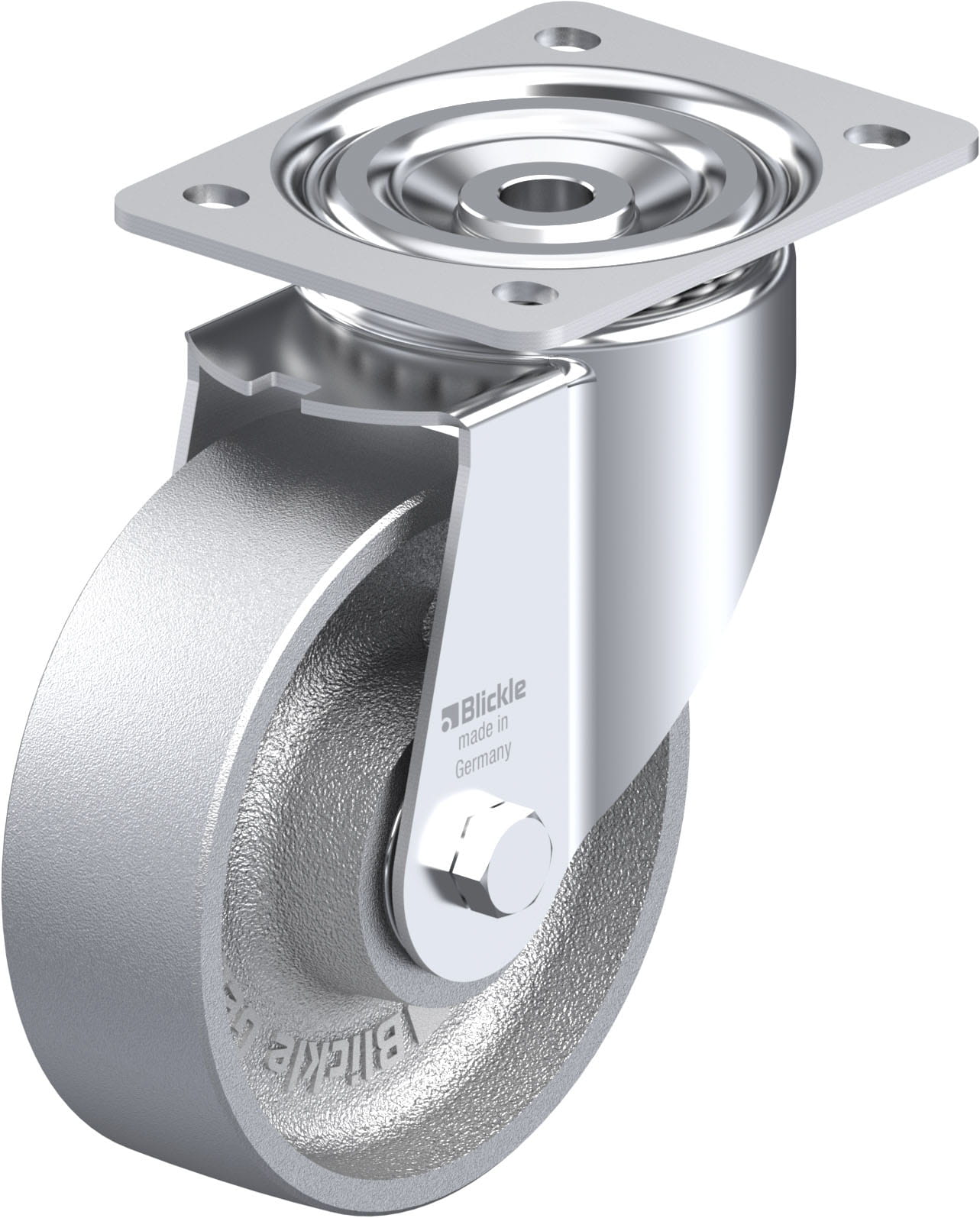

LI-G 150IK

Pressed steel swivel castor, with top plate fitting, heat-resistant, cast iron wheel

Bracket: LI series

• pressed steel, zinc-plated, blue-passivated, Cr6-free
• passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
• double ball bearing in the swivel head
• strong central kingpin
• smooth rolling characteristic and low wear, increased service life
• swivel head play is set specifically for high-temperature applications
• highly heat-resistant grease

Wheel: G series

• rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Other features:

• chemical resistance to many aggressive substances
• consider the surface pressure on sensitive floors due to high point loads
• to be lubricated according to the application temperature

• Load capacity may be reduced in temperatures over +70 °C
