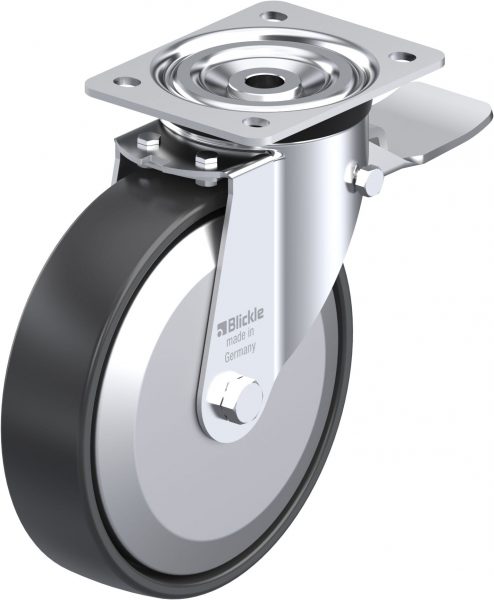

L-PP 200K-ST-EL-FA

200

50

400

235

140 x 110

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-top' Polypropylene wheel, with steel thread guard, el...

ID: 951808

Nasvet strokovnjaka!

Najdemo pravo
rešitev za vas

Kratki
dobavni roki

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system ‘stop-top’ Polypropylene wheel, with steel thread guard, electrically conductive

Bracket: L series

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: PP series

  • high-quality polypropylene, impact resistant, hardness 60 Shore D, colour black

Other features:

  • with synthetic thread guard, small
  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • electrical conductivity (ohmic resistance) ≤ 104 Ω
Teža 3,66 kg
EAN-Code

Manufacturer

Product Group

Premer kolesa (mm)

Širina kolesa (mm)

Vrste pritrditve

Vrsta ležaja

Nosilnost pri 4 km/h (kg)

Total Height (mm)

Top Plate size (mm)

Material tekalne obloge

Material wheel center

Tip Kolesa

Colour wheel tread

Colour wheel center

Operating temperature max (°C)

Operating temperature min (°C)

Hardness

Ne pušča sledi

Antistatično

Elektro prevodno

Non-staining

Odporno na korozijo

Odporno na temperaturo

Odporno na hidrolizo

Primerno za avtoklav
