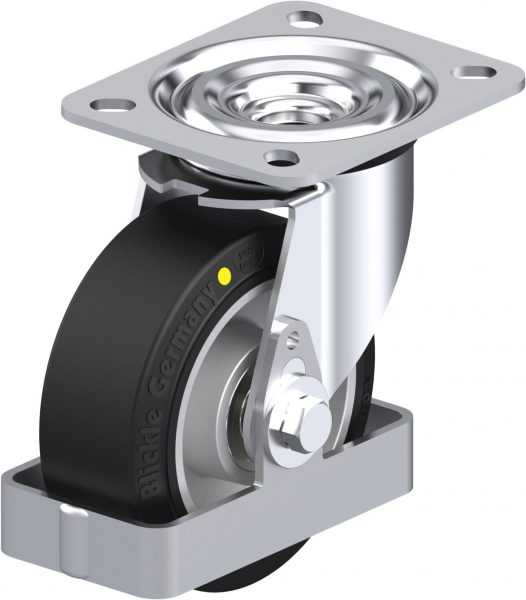

L-ALEV 100K-EL-FS

Pressed steel swivel castor, medium duty design, with top plate fitting, steel foot guard, heavy duty wheel, with ‘Blickle EasyRoll’ elastic solid rubber tyres, with aluminium wheel centre, electrically conductive

Bracket: L series

• pressed steel, zinc-plated, blue-passivated, Cr6-free
• double ball bearing in the swivel head
• strong central kingpin (from wheel Ø 150 mm)
• swivel head seal
• minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: ALEV series

• tyre: high-quality elastic solid rubber “Blickle EasyRoll” in smooth rolling quality, hardness 71 Shore A, colour black
• wheel centre: die-cast aluminium

Other features:

• high chemical resistance to many aggressive substances, except oils
• operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
• electrical conductivity (ohmic resistance) ≤ 10⁴ Ω
