GSTN 502/70H7

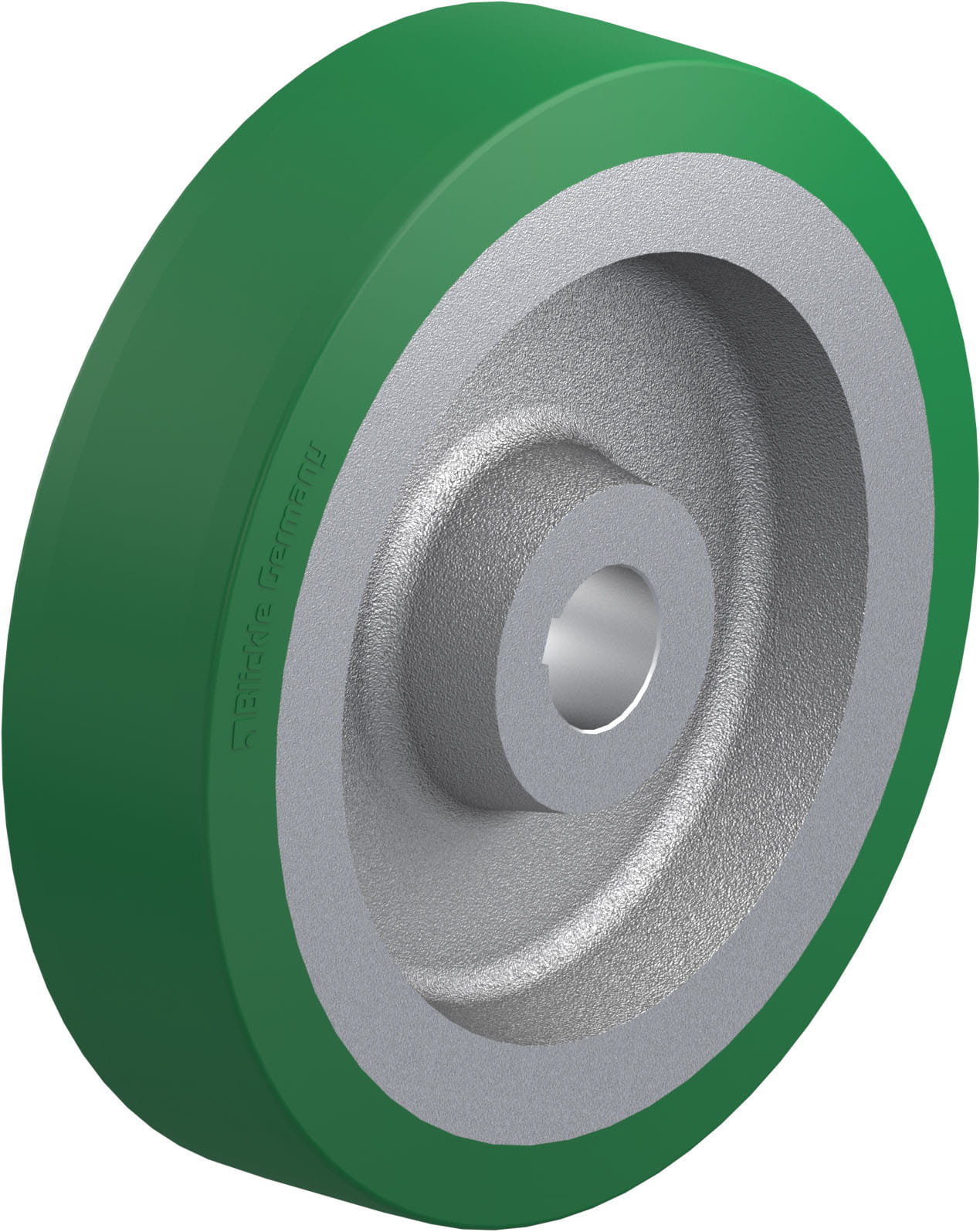

Heavy duty drive wheel, with hub keyway, with Blickle Softhane® polyurethane tread, with cast iron wheel centre

Tread:

• high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A
• extra-thick elastic tread for excellent operational comfort
• very good floor preservation, low-noise operation
• low rolling resistance
• high abrasion resistance
• high cut and tear propagation resistance
• colour green, non-marking, non-staining
• excellent chemical connection with the wheel centre

Wheel centre:

• rugged grey cast iron
• axle bore and hub keyway in accordance with DIN 6885
• lacquered, colour silver

Other features:

• high chemical resistance to many aggressive substances
• operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
